Long Range AirborneNLOS COFDM Wireless Microwave UAV HD Mobile Video Transmitter
Product Description:
HMMIT02 can transmit one way HD Video(1920*1080p) ,one way stereo audio
and one way transparent serial data with AES encryption. This model
is based on advanced COFDM modulation technology and special designed for
long distance vedio transmission of special vehicle,UAV,UAG,Robot.
This model can adapt carrier moving speed up to 380km/hr, which
meet the demand of fast speed fixed wing aircraft, helicopter, UAV,
UAV and special vehicles.
Product Sell Point:
1. VHF UHF application
2. Full HD 1080P/i quality image
3. Short latency 40ms real time broadcast
4. One-way picture,one/two way voice,reverse control cloud deck function are available.
5. Transmit distance up to 1km NLOS and 15km LOS for UAV.
6. Can stably transmitter video&audio signal under the
condition of high-speed mobile and multipath interference.

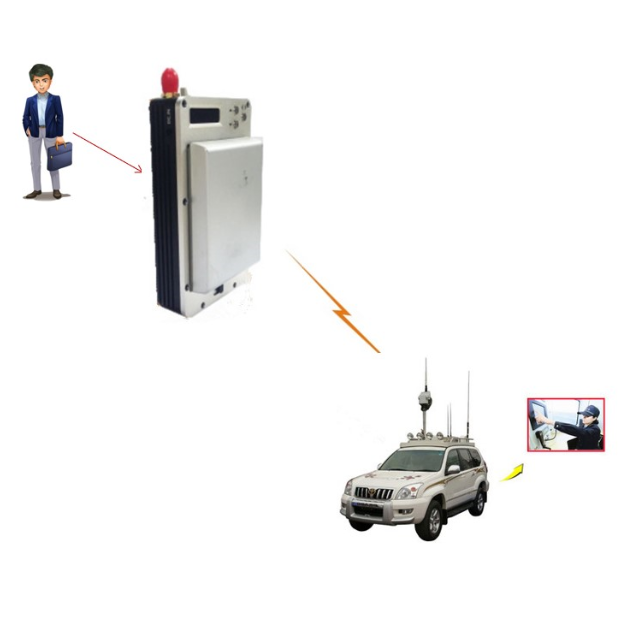

Transmitter Picture:
Transmitter HMMIT02 Specification:
| General Part: |
| Working Frequency: | 300MHz~5.8GHz,(Frequency is adjustable) |
| Output Power: | 0.1~1.2W(adjustable) |
| Modulation: | COFDM 2K QPSK/TDS-OFDM |
| Channel Bandwidth | 1.25/2/4/6/8MHz (Optional) |
| Code Stream | 0.8Mbps~10Mbps |
| End-to-end Delay | 40ms |
| Error Rate: | ≤10-6 |
| Encryption: | AES/ABS(128bit) |
| FEC: | Viterbi (1/2,2/3,3/4) |
| Guard Interval: | 1/32,1/16,1/8,1/4 |
| Power Supply | DC10V~12V/1.5A |
| Transmit Distance | LOS 15KM for UAV; NLOS:500meter-1KM |
| Audio&Video Part: |
| AV Data Format: | MPEG-2 ,MPEG-4@ ML 4:2:0 |
| Audio Input: | Left and Right channel |
| Video Compression: | Conform to H.264,MPEG-2,MPEG-4 |
| Video Input: | HDMI |
| Resolution: | 1080P(1920*1080)compatible with 720× 576@ transmit rate is 30fps. |
| Two-way Voice: | Two way voice is optional |
| Others: |
| Antenna: | Omnidirectional handheld antenna |
| Battery: | Work 50 minutes(Continuously) |
| Weight: | 350g |
| Size: | L145mm*W105mm*H35mm |
| Working Temperature: | -30~70℃ Relative humidity :90% |
| Reserve Temperature: | -40~80℃; Relative humidity: 90% |
Receiver HMMIR04 Specification:
| General Part: |
| Work frequency: | 300MHz~ 5.8GHz(Adjustable) |
| Frequency spectrum: | The frequency spectrum function is available |
| TALLY System: | TALLY system(Optional) |
| Receive sensitivity: | -106dBm |
| Power supply: | AC 220V |
| Audio&Video Part: |
| Video output: | HDMI |
| Audio output: | Two way |
| Video compression: | H.265,H.264, MPEG-2@ ML 4:2:2 compatible with 4:2:0 |
| Video rate: | 25-30F/S |
| Resolution: | 1080P(1920*1080
)compatible with 720×620 |
| Two way voice: | Two way voice is optional |
| Others: |
| Weight: | 104g |
| Size: | 11.5x8x3cm |
| Interface: | One way HDMI interface(Optional) USB port for Storage |
| Parameter adjustable: | 1.The frequency,bandwidth,guard interval are adjustable |
| Work environment: | Temperature:-30~70℃ Relative humidity:90% |
| Reserve environment: | Temperature:-40~80℃ Relative humidity:90% |
