COFDM HD Video Transmitter 50KM 100KM Long Range Wireless Video
Transmitter
Product Description:
HMMAT05 has adopted the newest COFDM modulation technique and can stably transmit HDMI video,one
way stereo audio and one way transparent serial data more than
100-150km from air to ground. This model also has the feature of
small size, light weight and low consumption which make it an ideal
solution in high speed condition for data and video transmission of
UAV, fixed wing UAV, helicopter, UAV, UGV and special vehicle.
Product Sell Point:
1. Support 5-10W adjustable by user, can transmit max 100-150km from
air to ground
2. Strong anti-jamming and diffraction ability
3. Can stable transmit under NLOS high speed moving condition
4. AES128bits/265bits encryption ensures security
Transmitter HMMAT01 Specification:
| General Part: |
| Work frequency: | 300MHz~5.8GHz (Adjustable) |
| Output power: | 5W~10W (Adjustable) |
| Modulation: | COFDM 2K QPSK/TDS-OFDM |
| Channel bandwidth: | 2/4/6/8MHz (Adjustable) |
| Encryption: | AES/ABS(128bit) |
| Code stream | 0.8Mbps~10Mbp |
| End to end delay: | <40ms |
| Error rate: | ≤10-6 |
| FEC: | Viterbi (1/2,2/3,3/4) |
| Guard interval: | 1/32,1/16,1/8,1/4 |
| Encryption | AES256 |
| Power Supply: | DC10V~16V/2.0A |
| Transmit distance: | Urban area:3-5 kilometer, More than 100-150km from air to ground |
| Audio&Video Part: |
| AV data format: | H.264,MPEG-2,MPEG-4@ML 4:2:0 |
| Video input: | HDMI,HD-SDi,AV |
| Audio input: | Left and right channel |
| Video compression | Adopt H.265,H.264,MPEG-2,MPEG-4 |
| Resolution: | 1080P(19208*1080)compatible with 720× 576@ transmit rate is 30fps. |
| Audio&Video: | One way video,two way audio |
| Two way voice: | Two way voice is optional |
| Others: |
| Antenna: | Omnidirectional whip antenna |
| Battery: | work 4 hours (Continuously) |
| Weight: | 2.0kg (include battery) |
| Size: | 215mm×120mm×70mm(L × W ×H) |
| Work Temperature: | Temperature:-30~70℃ Relative humidity:90% |
| Reserve Temperature: | Temperature: -40~80℃ Relative humidity:90% |
Receiver HMRMR01 Specification:
| General Part: |
| Work frequency: | 300MHz~ 5.8GHz(Adjustable) |
| Frequency Spectrum: | The frequency spectrum function is available |
| TALLY System: | TALLY system(Optional) |
| Receive sensitivity: | -106dBm |
| Power supply: | AC 220V |
| Audio&Video: |
| Video output: | HDMI,SDi,AV |
| Audio output: | Two way |
| Video compression: | H.265,H.264, MPEG-2@ ML 4:2:2 compatible with 4:2:0 |
| Video rate: | 25-30F/S |
| Resolution: | 1920*1080 compatible with 720×620 |
| Two way voice: | Two way voice is optional |
| Others: |
| Weight: | 2.0kg |
| Size: | 1U,19inch crate (480mm×220mm×45mm(L × W ×H) |
| Interface: | One way SD-SDI interface(imbedded audio) One way HD-SDI interface(Optional) One way HDMI interface(Optional) One way analog composite video signal RJ45 interface(Optional) Data interface can be provided |
| Parameter adjustable: | 1.The signal quality,strength can be displayed on the LCD screen 2.The frequency,bandwidth,guard interval are adjustable |
| Work environment: | Temperature:-30~70℃ Relative humidity:90% |
| Reserve environment: | Temperature:-40~80℃ Relative humidity:90% |

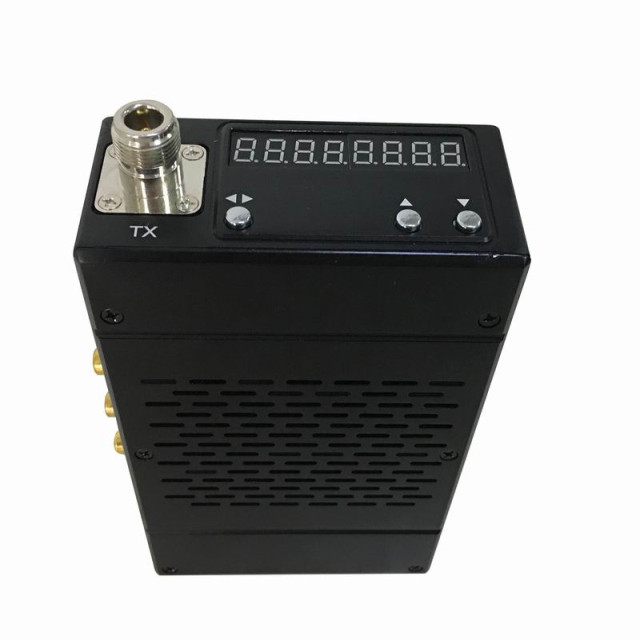

Transmitter Picture:
Our Service:
1. Lifelong maintainance
2. 24 hour technical support
3. Strong R&D capability; Customized project is welcomed
4. High quality product with competitive price,short delivery time
and responsible after-sale service
