New Arrival 4 Channel HDMI Portable COFDM Video Receiver
Product Description:
HMHHR01-4CH portable suitcase receiver is designed for
multi-channel receiving application. This model can receive audio
and video from four transmitters at the same time.
Its built-in 4 channel picture DVR(1TB)can record the real-time
audio and video and the users can play back the recorded video at
any time.
With 15inch LCD screen and built in battery, this model can
continuously work up to 6 hours to receive high definite pictures.
The whole system adopts the latest COFDM modulation and H.264 video
compression that can transmit stable full-hd digital video signal
under high speed mobile and heavy building blocks in city
environment.
Product Sell Point:
1. 4 Channel 1080P video reception
2. High quality H.265 digital video processing and coding
3. High resolution full HD picture 1080P(1920*1080)
4. Long power supply time,can continously work up to 6 hours.
5. 15inch LCD screen size,low consumption and easy for carry
6. Can stably transmitter video&audio signal under the
condition of high-speed mobile and multipath interference.
7. Excellent anti-interference performance under complex
electromagnetic condition.
8. One-way picture,one/two way voice,reverse control cloud deck function are available.
9. Strong transmitter capability NLOS.
10. Space diversity reception capability.

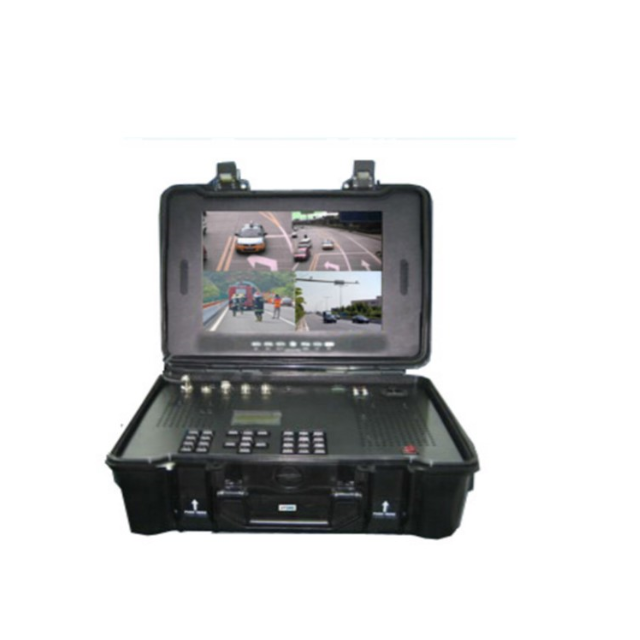

Product Picture:
4 channel Receiver Specification:
| General Part: |
| Work Frequency: | 300MHz~5.8GHz(Adjustable) |
| Channel Bandwidth: | 1.25/2/4/6/8MHz(adjustable) |
| Receive sensitivity: | -106dBm |
| Modulation: | COFDM 2K QPSK/TDS-OFDM |
| Code Stream: | 0.8Mbps~10Mbps |
| Error rate: | ≤10-6 |
| FEC: | Viterbi (1/2,2/3,3/4) |
| Guard interval: | 1/32,1/16,1/8,1/4 |
| Encryption: | AES/ABS(128bit) |
| Power supply: | AC220V/DC12V |
| Transmit distance: | On board application>150km ;Marine application >70km;City
application>20km;Suburban application> 40km |
| Audio&Video Part: |
| Video Compression: | Conform to MPEG-2,MPEG-4,H.264,H265 |
| Video output: | 4 channel HDMI or HD-SDI, 4 channel AV, 1 channel LAN(RJ45),4 channel USB(Storage function) |
| AV data format: | MPEG-2,MPEG-4 @ ML 4:2:0 |
| Resolution: | 1080P(19208*1080)compatible with 720× 576@ transmit rate is 30fps. |
| Two Way Voice: | Two way voice is optional |
| Others: |
| Antenna: | Omnidirectional antenna |
| LCD screen: | 15 inch LCD display |
| Built in battery: | Work 6hours continuously |
| Cloud Deck: | Cloud deck can be reversely controlled (Optional) |
| Memory: | 1T video recoder DVR |
| Appearance: | Hand-held case |
| Weight: | 17kg |
| Size: | 460mm×420mm×185mm(L × W ×H) |
| Work environment: | Temperature:-30~70℃ Relative humidity:90% |
| Reserve environment: | Temperature: -40~80℃ Relative humidity:90% |
