2019 Newest COFDM NLOS Full Duplex Wireless Mobile Video
Transmitter and Receiver
Product Description:
HMMIT02 has the character of light weight,small size and it can be
carried in pocket/briefcase for secret evidence or installed on UAV
for photograph,surveying and mapping etc. Being adopted the latest
COFDM technology,it can transmit real-time high definition
image(1080P) in high speed mobile none line of sight environment.
Its transmit distance can reach 500-1000meter in none line of sight
and 10-15km in line of sight condition. Meanwhhile, this model has
the LCD panel to support working frequency,bandwidth, RF power to
be adjusted.
Product Sell Point:
1. Low delay time only 40ms.
2. High definite resolution: 1080P(1920*1080)compatible with
720*576.
3. High quality digital video processing&video encoding and
decoding&DVD picture.
4. Excellent anti-interference performance under complex
electromagnetic condition.
5. One-way picture,one/two way voice,reverse control cloud deck function are available.
6. Transmit distance up to 1km NLOS and 15km LOS for UAV.
7. Space diversity reception capability.
8. Small size and light weight easy for carry.
9. Can stably transmitter video&audio signal under the condition
of high-speed mobile and multipath interference.

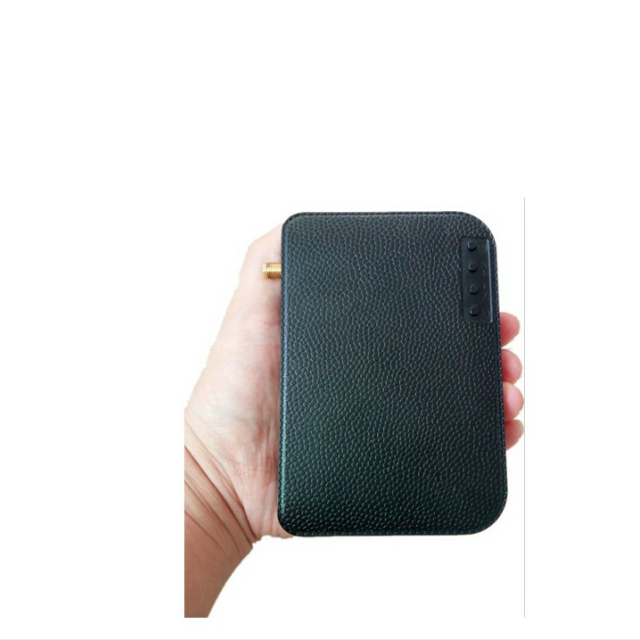

Transmitter Picture:
Transmitter HMMIT02 Specification:
| General Part: |
| Working Frequency: | 300MHz~5.8GHz,(Frequency is adjustable) |
| Output Power: | 0.1~1.2W(adjustable) |
| Modulation: | COFDM 2K QPSK/TDS-OFDM |
| Channel Bandwidth | 1.25/2/4/6/8MHz (Optional) |
| Code Stream | 0.8Mbps~10Mbps |
| End-to-end Delay | 40ms |
| Error Rate: | ≤10-6 |
| Encryption: | AES/ABS(128bit) |
| FEC: | Viterbi (1/2,2/3,3/4) |
| Guard Interval: | 1/32,1/16,1/8,1/4 |
| Power Supply | DC10V~12V/1.5A |
| Transmit Distance | LOS 15KM for UAV; NLOS:500meter-1KM |
| Audio&Video Part: |
| AV Data Format: | MPEG-2 ,MPEG-4@ ML 4:2:0 |
| Audio Input: | Left and Right channel |
| Video Compression: | Conform to H.264,MPEG-2,MPEG-4 |
| Video Input: | HDMI |
| Resolution: | 1080P(1920*1080)compatible with 720× 576@ transmit rate is 30fps. |
| Two-way Voice: | Two way voice is optional |
| Others: |
| Antenna: | Omnidirectional handheld antenna |
| Battery: | Work 50 minutes(Continuously) |
| Weight: | 350g |
| Size: | L145mm*W105mm*H35mm |
| Working Temperature: | -30~70℃ Relative humidity :90% |
| Reserve Temperature: | -40~80℃; Relative humidity: 90% |
Receiver Picture:
Receiver HMMIR04 Specification:
| General Part: |
| Work frequency: | 300MHz~ 5.8GHz(Adjustable) |
| Frequency spectrum: | The frequency spectrum function is available |
| TALLY System: | TALLY system(Optional) |
| Receive sensitivity: | -106dBm |
| Power supply: | AC 220V |
| Audio&Video Part: |
| Video output: | HDMI |
| Audio output: | Two way |
| Video compression: | H.265,H.264, MPEG-2@ ML 4:2:2 compatible with 4:2:0 |
| Video rate: | 25-30F/S |
| Resolution: | 1080P(1920*1080
)compatible with 720×620 |
| Two way voice: | Two way voice is optional |
| Others: |
| Weight: | 104g |
| Size: | 11.5x8x3cm |
| Interface: | One way HDMI interface(Optional) USB port for Storage |
| Parameter adjustable: | 1.The frequency,bandwidth,guard interval are adjustable |
| Work environment: | Temperature:-30~70℃ Relative humidity:90% |
| Reserve environment: | Temperature:-40~80℃ Relative humidity:90% |
Our Service:
1. Lifelong maintainance
2. 24 hour technical support
3. Strong R&D capability; Customized project is welcomed
4. High quality product with competitive price,short delivery time
and responsible after-sale service

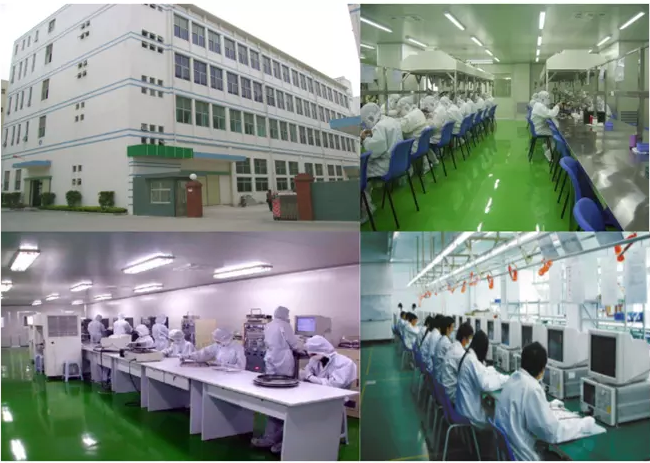

Our Factory:
