UAV Ground Control Station Wifi Military Suitcase COFDM Video
Receiver
Product Description:
HMHHR01 is the broadcast level high-definition image multi-function
receiver, with the current leading COFDM debugging technology, it
has a relatively narrow air bandwidth (2MHz-8Mhz) and strong
Anti-multipath interference ability; This design also supports
48hours U disk video recording. Its strong audio and video
compression / decompression enable the end to end latency less than
40ms. Its TCP / IP network technology enable the payload software
access to the IP camera make this system for a wide usage.
Key Feature:
1. Suit case type for convenient ground operation
2. H.264,H.265 video compression
3. Manual AES256 double encryption,BISS,ISS
4. Can control operation system by using external mouse
5. Reverse data control RS485/232/422,TTL available
6. RJ45 port for web browser and remote video monitoring

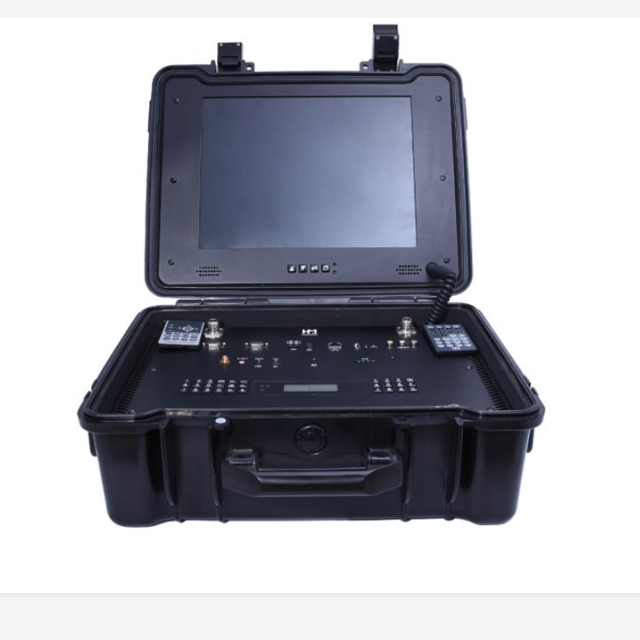

Product Picture:
1-Channel Receiver Parameter:
| Radio Frequency Modulation Section |
| Frequency | 300MHz～5.8GHz |
| Modulation | COFDM QPSK,16QAM,64QAM |
| Channel Bandwidth | 2/2.5/4/8MHz |
| Encryption | Manual AES double encryption |
| Receive Sensitivity | ≤-100dBm |
| Signal strength | Received signal strength indicated on liquid crystal |
| System Section |
| Receiving polarization | Vertical polarization, single antenna reception |
| Receiving technology | Spatial diversity reception technology |
| Usage | Handheld suit case |
| Audio Video System |
| Decompression format | H.264,H.265 |
CVBS input | 720x480 60I(NTSC),720x576 50I(PAL),Self adaptive |
| Audio output | Air interface hand microphone |
| Resolution | HD1080P(1920*1080),Compatible with 1080I,720P,480P |
| Frame Rate | Standard 24,50,60 frame/send, compatible with other frame |
| Video Output | HDMI or SDI,AV,RJ45 |
| Audio Output | HDMI,3.5 audio mother base |
| 4G System |
| 4G Transmit | Netcom |
| Position | GPS/Beidou |
| Other Part |
| Display | Built in 15 or 17inch LCD screen |
| Power Supply | Lithium battery can work more than 4 hours |
| Size | 460mm×420mm×185mm(L × W ×H) |
| Weight | 18KG |
| Work environment: | Temperature:-30~70℃ Relative humidity:90% |
| Reserve environment: | Temperature: -40~80℃ Relative humidity:90% |
