Light Weight Body-Worn Radio Signal Booster HDMI 50km10km COFDM
Wireless Video Transmitter
Product Description:
HMMAT03 has the character of low power,small dimension for long
distance video/two way data transmission.
By adopting H.264 coding format and COFDM (coded orthogonal
frequency division multiplexing) modulation,this design can transit
high quality video with fast moving speed in city environment with
heavy block and buidlings.
Thus it is specially used for UAV long range distance transmission
,live broadcsast video audio transmission, security etc.
Product Sell Point:
1. Great security by encryption of AES 256 bits
2. Modular design and highly integrated for mini size
3. Full hd resolution,1080i/P @30fps
4. Adjustable working frequency, LCD board displays the working
frequency
5. Stable signal transfer in NLOS environment and high speed moving

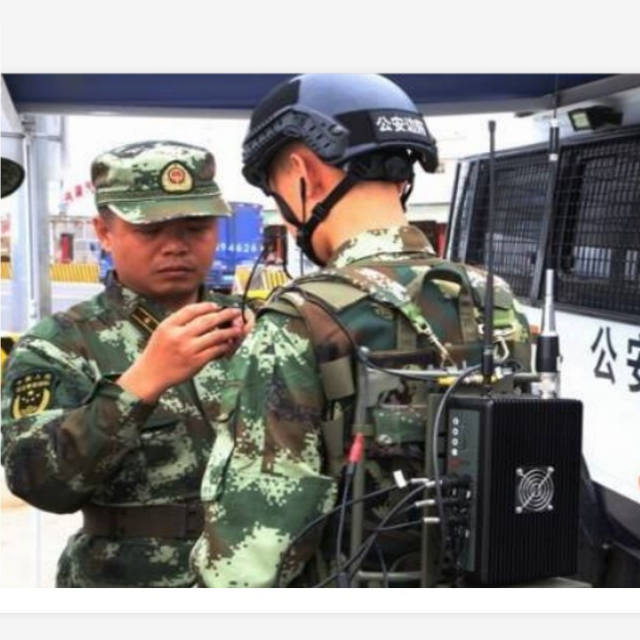

Transmitter Picture:
Transmitter HMMAT01 Specification:
| General Part: |
| Work frequency: | 300MHz~5.8GHz (Adjustable) |
| Output power: | 1W~5W (Adjustable) |
| Modulation: | COFDM 2K QPSK/TDS-OFDM |
| Channel bandwidth: | 1.25/2/4/6/8MHz (Adjustable) |
| Encryption: | AES/ABS(128bit) |
| Code stream | 0.8Mbps~10Mbp |
| End to end delay: | <200ms |
| Error rate: | ≤10-6 |
| FEC: | Viterbi (1/2,2/3,3/4) |
| Guard interval: | 1/32,1/16,1/8,1/4 |
| Encryption | AES256 |
| Power Supply: | DC10V~16V/2.0A |
| Transmit distance: | Urban area:1-3 kilometer |
| Audio&Video Part: |
| AV data format: | MPEG-2,MPEG-4@ML 4:2:0 |
| Video input: | PAL/NTSC |
| Audio input: | Left and right channel |
| Video compression | Adopt H.265,H.264,MPEG-2,MPEG-4 |
| Resolution: | 1080P(19208*1080)compatible with 720× 576@ transmit rate is 30fps. |
| Audio&Video: | One way video,two way audio |
| Two way voice: | Two way voice is optional |
| Others: |
| Antenna: | Omnidirectional whip antenna |
| Battery: | work 4 hours (Continuously) |
| Weight: | 2.0kg (include battery) |
| Size: | 215mm×120mm×70mm(L × W ×H) |
| Work Temperature: | Temperature:-30~70℃ Relative humidity:90% |
| Reserve Temperature: | Temperature: -40~80℃ Relative humidity:90% |
Receiver HMRMR01 Specification:
| General Part: |
| Work frequency: | 300MHz~ 5.8GHz(Adjustable) |
| Frequency Spectrum: | The frequency spectrum function is available |
| TALLY System: | TALLY system(Optional) |
| Receive sensitivity: | -106dBm |
| Power supply: | AC 220V |
| Audio&Video: |
| Video output: | HDMI,SDi,AV |
| Audio output: | Two way |
| Video compression: | H.265,H.264, MPEG-2@ ML 4:2:2 compatible with 4:2:0 |
| Video rate: | 25-30F/S |
| Resolution: | 1920*1080 compatible with 720×620 |
| Two way voice: | Two way voice is optional |
| Others: |
| Weight: | 2.0kg |
| Size: | 1U,19inch crate (480mm×220mm×45mm(L × W ×H) |
| Interface: | One way SD-SDI interface(imbedded audio) One way HD-SDI interface(Optional) One way HDMI interface(Optional) One way analog composite video signal RJ45 interface(Optional) Data interface can be provided |
| Parameter adjustable: | 1.The signal quality,strength can be displayed on the LCD screen 2.The frequency,bandwidth,guard interval are adjustable |
| Work environment: | Temperature:-30~70℃ Relative humidity:90% |
| Reserve environment: | Temperature:-40~80℃ Relative humidity:90% |
