Body Worn COFDM Wireless Mobile Portable Video Transmitter
Product Description:
HMMAT01 is a new kind of 1080P broadcasting TV COFDM equipment that
is designed for news gathering, television outside broadcasts and
studio applicaiton.
The product supports both HD and SD cameras with low delay and has
dual V mounts, one side for camera mounted and other side for
Li-battery powered, convenient to be carried and installed.
Meanwhile being adopted the latest leading COFDM technology with
H.264 compression, this system can perform video transmission in
high-speed motion and NLOS(non line of sight)condition.
Key Feature:
1. High quality H.264/H.265 digital video processing and coding
2. High resolution full HD picture 1080P(1920*1080)
3. Lithum battery can continously work 4 hours.
4. Can stably transmitter video&audio signal under the
condition of high-speed mobile and multipath interference.
5. Excellent anti-interference performance under complex
electromagnetic condition.
6. One-way picture,one/two way voice,reverse control cloud deck function are available.
7. Strong transmitter capability NLOS.
8. Space diversity reception capability is avaliable.
9. Small size,low consumption and easy for carry.

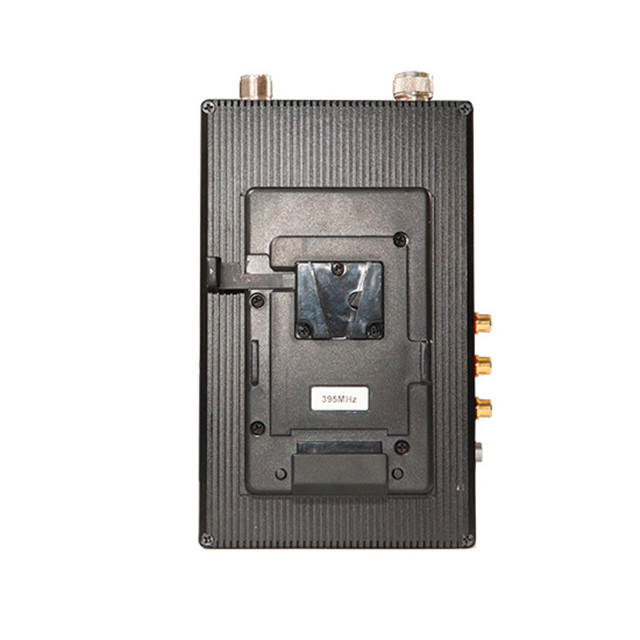

Transmitter Picture:
Transmitter HMMAT01 Specification:
| General Part: |
| Work frequency: | 300-800MHz(Other can be customized) |
| Output power: | 5W-10W(Adjustable) |
| Modulation: | COFDM 2K QPSK/TDS-OFDM |
| Channel bandwidth: | 2/2.5/4/8MHz(adjustable)(Adjustable) |
| Encryption: | AES256/ABS(128bit),BISS,ISS |
| Code stream | 0.8Mbps~10Mbp |
| Error rate: | ≤10-6 |
| FEC: | Viterbi (1/2,2/3,3/4) |
| Guard interval: | 1/32,1/16,1/8,1/4 |
| Power Supply: | DC10V~16V/2.0A |
| Transmit distance: | City area:1-3 kilometer |
| Audio&Video Part: |
| AV data format: | MPEG-2,MPEG-4@ML 4:2:0 |
| Video input: | HDMI(SDI),AV |
| Audio input: | Left and right channel |
| Video compression | Adopt H.265,H.264,MPEG-2,MPEG-4 |
| Resolution: | 1080P(19208*1080)compatible with 720× 576@ transmit rate is 30fps. |
| Audio&Video: | One way video,two way audio |
| Two way voice: | Two way voice is optional |
| Others: |
| Antenna: | Omnidirectional whip antenna |
| Battery: | work 4 hours (Continuously) |
| Weight: | 2.0kg (include battery) |
| Size: | 215mm×120mm×70mm(L × W ×H) |
| Work Temperature: | Temperature:-30~70℃ Relative humidity:90% |
| Reserve Temperature: | Temperature: -40~80℃ Relative humidity:90% |
Receiver HMRMR03 Parameter:
| General Part: |
| Work frequency: | 300-800MHz(option) |
| Frequency Spectrum: | The frequency spectrum function is available |
| Receive sensitivity: | -106dBm |
| Power supply: | AC 220V |
| Audio&Video: |
| Video output: | HDMI(SDI),AV |
| Audio output: | Two way |
| Video compression: | H.265,H.264, MPEG-2@ ML 4:2:2 compatible with 4:2:0 |
| Video rate: | 25-30F/S |
| Resolution: | 1920*1080 compatible with 720×620 |
| Two way voice: | Two way voice is optional |
| Others: |
| Weight: | 2.0kg |
| Size: | 1U,19inch crate (480mm×220mm×45mm(L × W ×H) |
| Interface: | One way SD-SDI interface(imbedded audio) One way HD-SDI interface(Optional) One way HDMI interface(Optional) One way analog composite video signal RJ45 interface(Optional) Data interface can be provided |
| Parameter adjustable: | 1.The signal quality,strength can be displayed on the LCD screen 2.The frequency,bandwidth,guard interval are adjustable |
| Work environment: | Temperature:-30~70℃ Relative humidity:90% |
| Reserve environment: | Temperature:-40~80℃ Relative humidity:90% |
Our Service:
1. Lifelong maintainance
2. 24 hour technical support
3. Strong R&D capability; Customized project is welcomed
4. High quality product with competitive price,short delivery time
and responsible after-sale service
