30KM Two Way Data COFDM IP Ethernet Transmitter
Product Description:
HMCFIP01 was specially desied to provide ultra-long-distance data
transmission for drones
with a transmission distance of up to 30KM and ultra low latency.
This model has rich interface supporting the connection of docking
camera, infrared camera,
drone control unit, external sensor, etc.
Key Feature:
1. Support 30km NLOS transmission, bandwidth up to 17Mbps.
2. H.264 ultra low latency video encode and decode, less than100ms
end to end delay
3. Excellent resistance to multipath, penetration performance.
4. Powerful electromagnetic compatibility, high reliability and low
power consumption
5. 128bit AES or 256 bits AES encription
6. Support RTSP/RTMP various streaming media protocols
7. Rich interface, strong scalability, support data transmission
Product Picture:
Parameter:
| General: |
| Work Frequency | 1427.9-1447.9MHz ( or 2405-2485MHz ) |
| Bandwidth | 5MHz,10MHz,20MHz |
| Output Power | 33dBm +/- 1dBm |
| Modulation | OFDM |
| Video and Audio |
| Code Rate | Single node 20Mbps max (30Mbps max, optional) |
| Number of nodes | Up to 16 nodes |
| Data interfacer | rs485, rs422, rs232 |
| Video interface | RJ45,HDMI, CVBS (optional analog audio interface) |
| Antenna interface | RP_SMA male |
| Out-of-band noise | <=-135dBm /Hz@1575MHz, (the actual measurement has no effect on
the GPS signal) |
| Transmit Range | More than 30km from air to ground |
| Others: |
| Work Power | DC12V/2A |
| Power Supply range | DC7~30V |
| Power Consumption | TX: 8.90W RX: 2.80W (Note: code and decode board +3W) |
| Size | 115.5*77*32mm |
| Weight | 315g |
| Temperature Range | -30~60°C (working temperature, no condensation); -30~80°C (storage
temperature) |

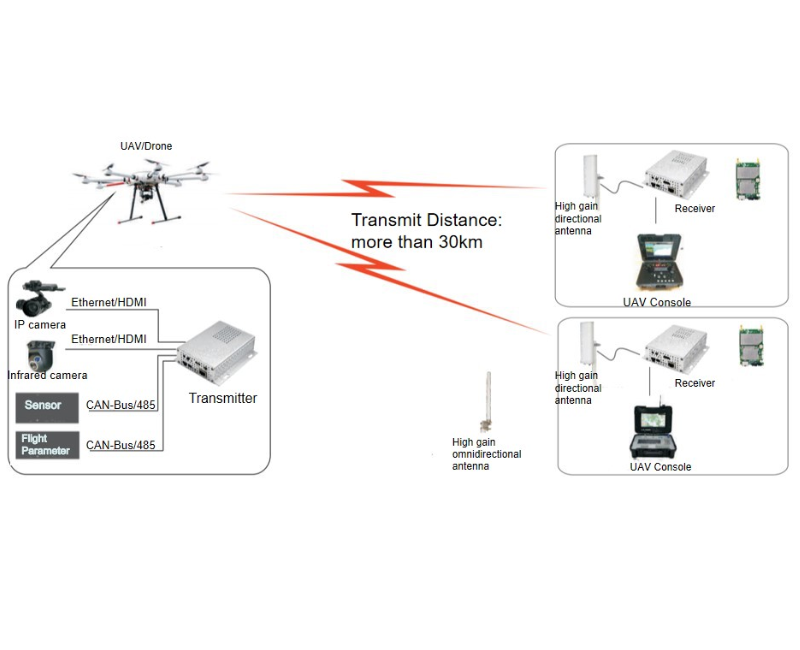

Application:
