H.265 30KM Long Range Two Way UAV Video Data Transmitter for Drone
Product Description:
HMWFT01-30UP is OFDM two-way wireless video data transmission link
that supports Ethernet port data and RS232 serial port data two-way
wireless transparent transmission.
This model can be connected with camera with RJ45,HDMI and AV port
and its stream can be transmitted live on Youtube,Facebook and
viewed trhough mobile phone in real time.
With the small size and light weight, this model support wireless
transmission distance: air-to-ground 30 kilometers, 50 kilometers,
80 kilometers, 100 kilometers and other levels.
Advantage:
* Dual antenna transmit and receive, MIMO mode of operation
* Small size and light weight for long range high definition video
and two way data transmission
*High resolution 1080P(1920*1080)compatible with 720× 576
* Integrated PCB design for stable Audio Video and data
transmission
* Low consumption; Excellent anti-interference performance under
complex electromagnetic condition
* Can stably transmitter video&audio signal under the condition
of high-speed mobile and multipath interference
* High quality digital video processing&video encoding and
decoding&HDMI picture
* Can transmit under a variety of complex weather conditions

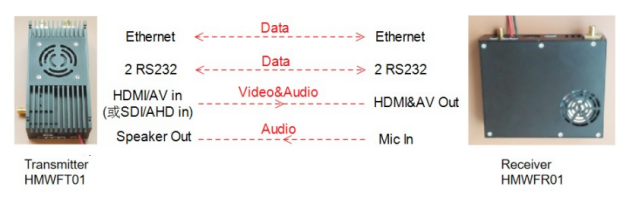

Transmission diagram:
Transmitter Technical Specification
| General Part: |
| Working Frequency: | 1.4GHz or 800MHz |
| Output Power: | 2 W |
| Modulation: | OFDM |
| Channel Bandwidth | 4MHz,8MHz,10MHz,16MHz,20MHz |
| Code Stream | 0.8Mbps～20Mbps |
| End-to-end Delay | 120ms |
| Error Rate: | ≤10-6 |
| Encryption: | Supports |
| FEC: | Viterbi (1/2,2/3,3/4) |
| Guard Interval: | 1/32,1/16,1/8,1/4 (optional) |
| Power Supply: | DC12V |
| Transmit Distance: | More than 30km from air to ground for drone |
| Audio,Video&Data Part: |
| Video Compression format: | H.265 1080P@60fps |
| Video Input: | Mini HDMI, RJ45, AV |
| Data | 2pcs RS232 data ports (bidirectional) |
| Others: |
| Encryption: | Supported |
| Antenna: | Hand held antenna |
| Battery: | Without |
| Weight: | 160g(not include antenna weight) |
| Size: | 102x52x28.8mm |
| Working Temperature: | -30～70℃ Relative humidity :90％ |
| Reserve Temperature: | -40～80℃; Relative humidity: 90％ |
Receiver Technical Parameter
| General Part: |
| Work Frequency: | 1.4GHz or 800MHz |
| Receive sensitivity: | -108dBm |
| End to End Delay: | 120ms |
| Power supply: | DC12V |
| Audio,Video&Data: |
| Video output: | Mini HDMI, AV,RJ45 |
| Video compression format: | H.265 1080P@60fps |
| Data: | 2pcs RS232 data ports (bidirectional) |
| Video Storage: | TF card and U disk |
| Others: |
| Space diversity: | Available |
| Antenna: | FRP Omnidirectional / directional antenna |
| Weight: | 200g |
| Product Size: | 99x84x26mm |
| Work environment: | Temperature:-30～70℃ Relative humidity:90％ |
| Reserve environment: | Temperature:-40～80℃ Relative humidity:90％ |
Our Service:
1. Lifelong maintainance
2. 24 hour technical support
3. Strong R&D capability; Customized project is welcomed
4. High quality product with competitive price,short delivery time
and responsible after-sale service
